15.6" Ipad Design Wall Mounted LCD Media Multi Touch digital signage Indoor Screen
Ipad Design LCD Description:
1. Product characteristics: Imitate Apple appearance design, profile frame with explosion-proof toughened glass panel, super-strong texture of equal-edge design, can be used for general conversion of horizontal and vertical screens, different installation scenarios for customers;
2. Product size: 15.6 inch-65 inch product size is complete;
3. Support: infrared touch, nano touch, capacitance. Touch;
4. Product Solution: Intelligent Single Computer Solution, Android Solution, PC (Computer in One) Solution
5.Ultra-thin and ultra-clear design, easy to use, beautiful
6. High resolution, high contrast, high brightness, greatly enhance the layering of the picture, better performance details
7. Fitted with high transparent tempered safety glass to protect the screen surface. 2mm to 8mm thickness available.
Ipad Design LCD Specifications:
| LCD Panel | Model | 7-65 Inch Optional DID LCD Panel |
| Resolution | 1920×1080(H×V) |
| Pixel Pitch | 0.53025×0.53025(mm) |
| Brightness | 700(cd/ m ) |
| Contrast Ratio | 4000:1 |
| Response Time | 6ms |
| Display Color | 16.7M |
| Viewing Angle | 178°(H) / 178°(V) |
| Image | Aspect Ratio | 16:09 |
| Filter | 3D combing filter, Digital noise reduction |
| Video Formats | PAL,NTSC |
| Signal Source | Composite Video Input | CVBS(BNC) ×1; |
| Composite Video Output | CVBS(BNC) ×1 ; |
| Digital Signal Input | HDMI×1; 1920x1080@ 60Hz Backwards compatible |
| Computer Signal Input | VGA(DB-15) ×1;1920x1080@ 60Hz Backwards compatible |
| Digital Signal Input | DVI(DVI-I)×1;1080P(1920×1080) Backwards compatible |
| Built-in Controller | Computer Centralized Control Interface | RS232 |
| Function | Signals combine and display arbitrarily |
| | Automatic Temperature Control | Work automatically according to the set temperature and actual temperature of the machine to control fan operation |
| System | Image Signal Gain | A more stable and correct image control |
| Operation Mode | Computer centralized control |
| MTBF | 50000 hs |
| Power Supply | Voltage | 100~240V |
| Power Consumption | 230W |
| Sructure | Frame Size | Upper side:3.5mm; lower side:1.7mm; left side:3.5mm; right:1.7mm |
| Installation Dimensions | 1024mm×578.6mm×141.5mm |
| Display Area | 1018.10mm×572.70mm |
| Installation Position | 564×200(mm) |
| Material of Shell | Metal |
| Installation | Standard cabinets, custom cabinets |
| Weight | G.W. | About 31Kg |
| N.W. | About 22Kg |
| Environment | Storage Temperature | -20°C~65℃ |
| Working Temperature | 0°C~55℃ |
| Working Humidity | 10%~90% |
Product image
Perfect Design
Designed sleek & slim, perfect for a any space.
178° x 178° wide viewing angle optional
Alowing viewing of the screen from vitually any angle.
Open Frame & Landscape/Portrait Mode
Support both portrait & landscape orientation for greater flexibility.
Three Types of Installation
Standard VESA hole available for ceiling, stand and wallmount.
Increased Brightness
Brightness can be increased making the IDS for outdor visbility.

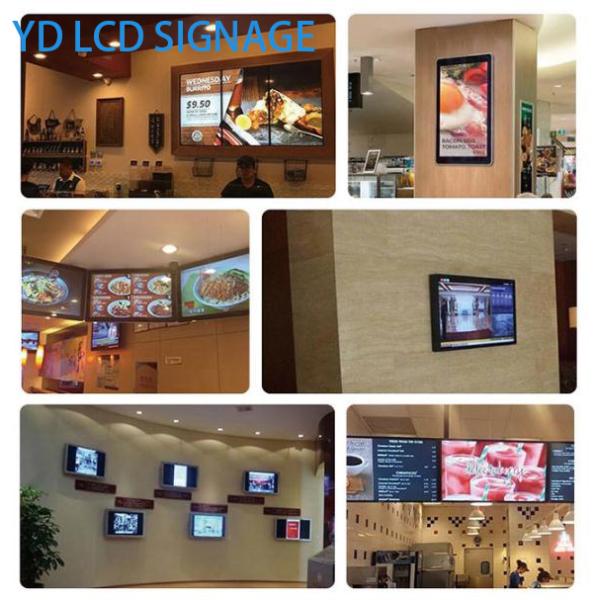

Application
Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,stadiums, museums, convention centers, ticket agencies, HR market, lottery centers.
Our service
1) Pre-sale Service:
Design suitable product, offer the reasonable consultation, testing your material.
2) After-sale Service:
We provide remote free of charge after-sale service.On the spot installation guidance is provided by our engineers and the buyer is responsible for the Expense.
We have perfect after-sales service system and professional team for whole using life.
3) All orders will be supplied within the stipulated period.
4) Provide customer site for your reference.
